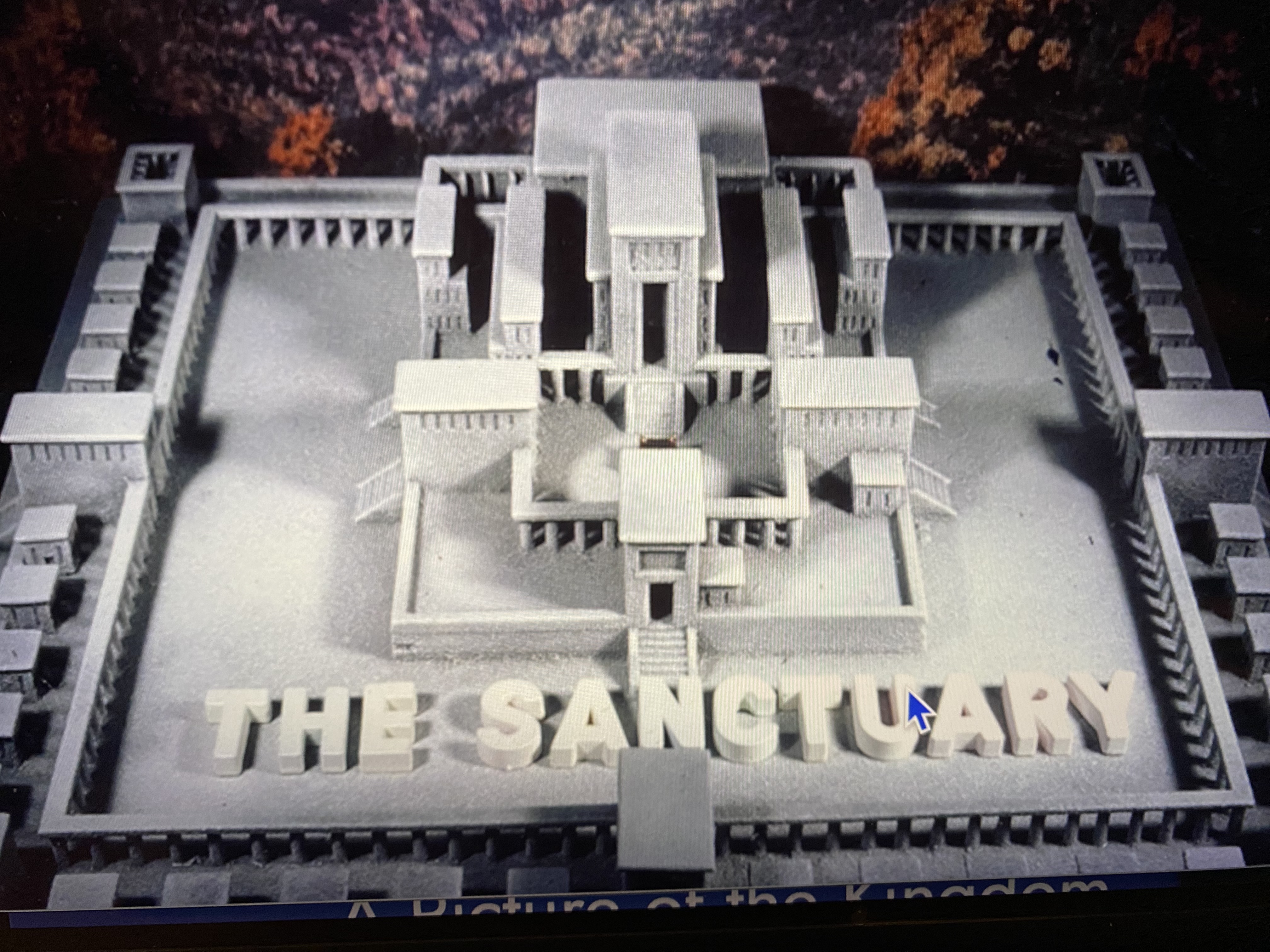

The picture is showing most of the court and corners In this illustration, it is just missing the two kitchens, the one on the “SE” corner to the far left, and the one on the “NE” corner identical to the ones in the upper corners. You can see them displayed in the green temple picture, the ones marked with an “F”.
The Altar points to Christ’s Sacrifice it is in the very center of the whole complex,
This shows the 3 inner gates

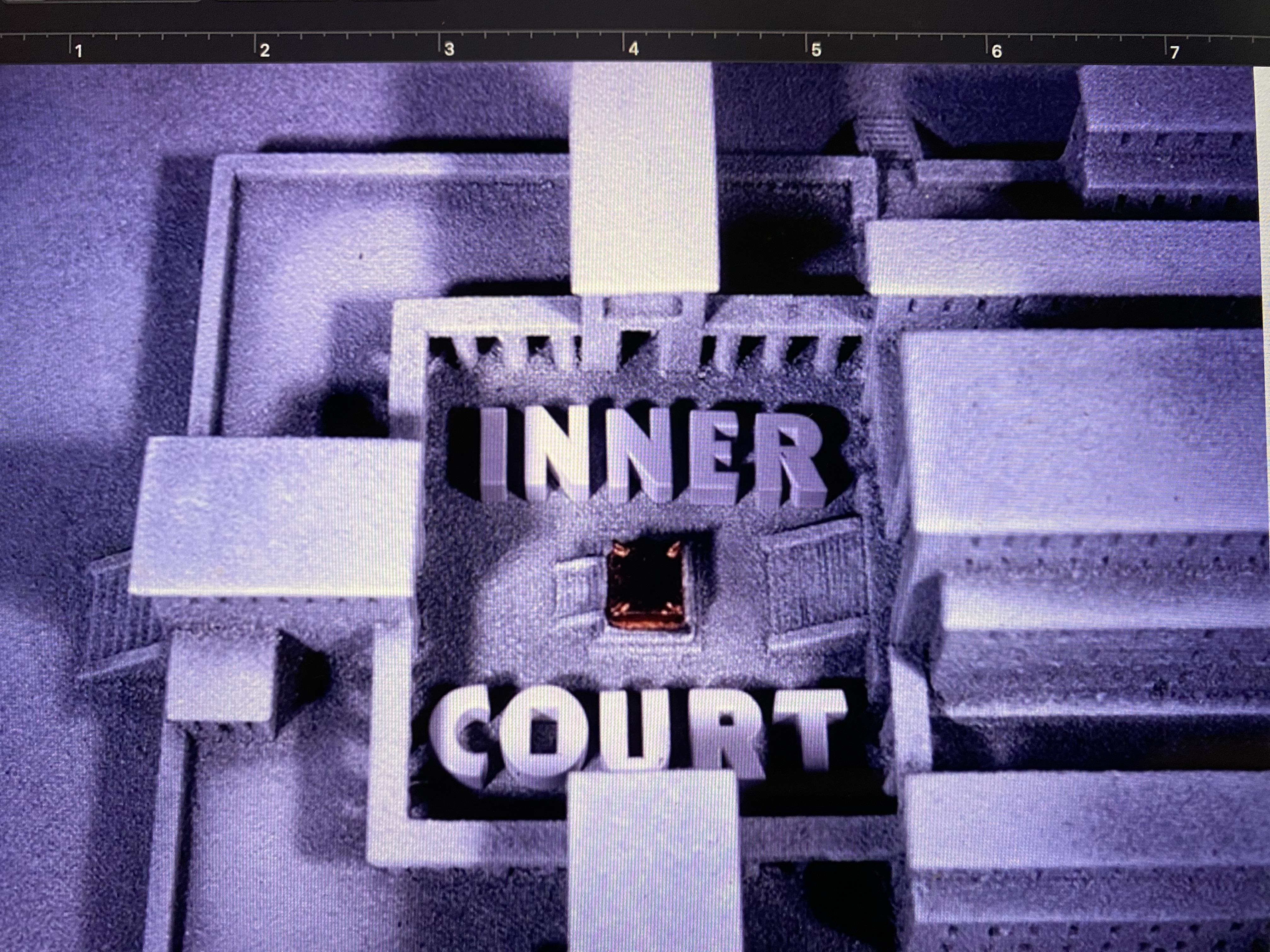

this shows the inner court three gates
on the left is the south, on the right the North and at the bottom the inner East Gate.
this shows all three of the inner gates on a level 8 steps higher
this is a graphic over view of the temple and below it, the side view as walking in from the east side, particularly showing how the outer court is 7 steps from the ground level, the inner court is 8 steps up from the outer court, and the temple is 10 steps up from the inner court level, this includes the sidewalk outside the temple ( often referred to as the “Separate place” and the temple’s side chamber.s
The three outer court gates are all the same size
and shape and are all reached by 7 steps

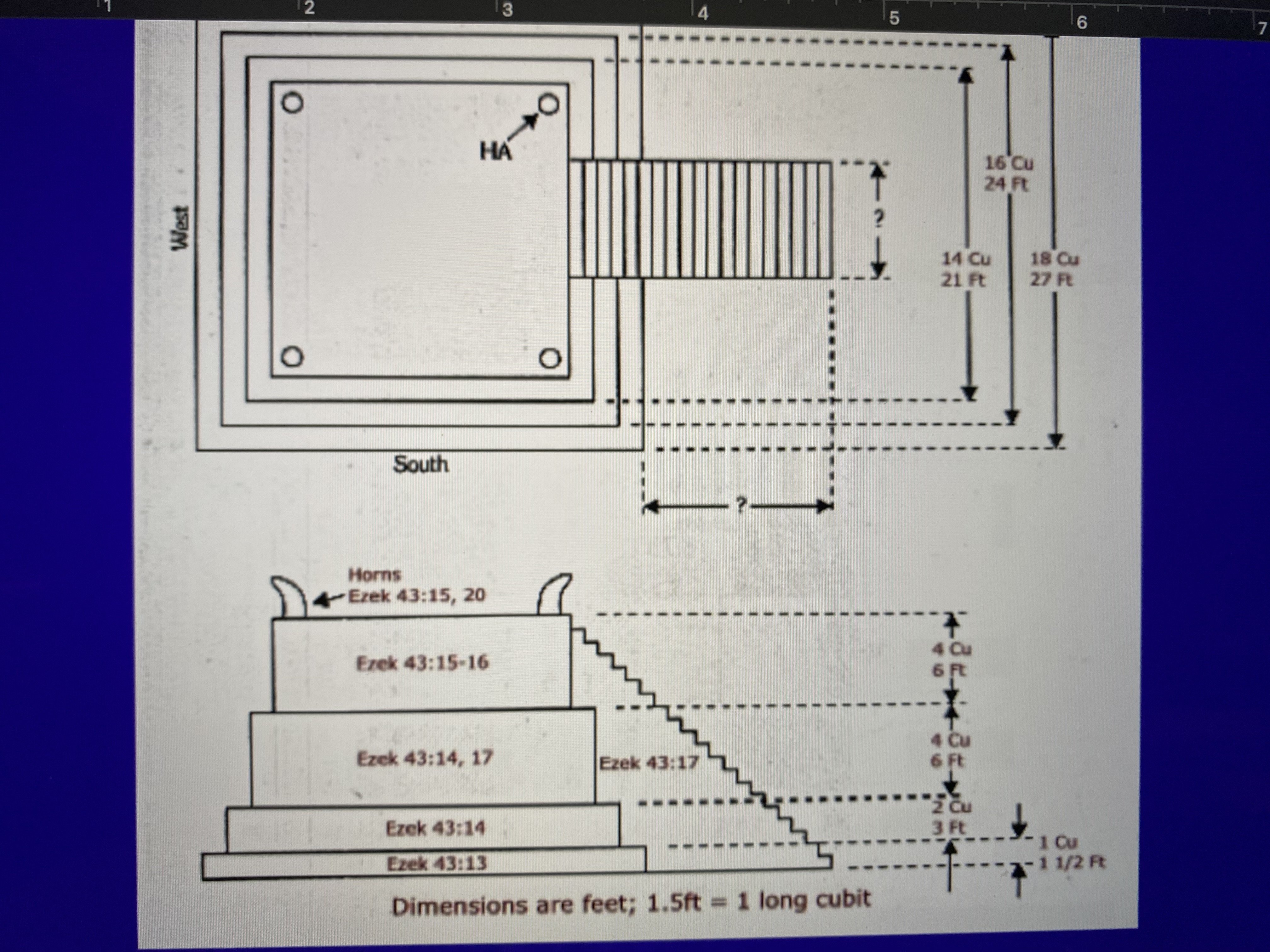

The altar has 4 levels, and is reached by unnumbered step on the east side.
